Gate Valve Lockout in Pakistan Price Types Uses Benefits & Suppliers. Gate Valve Lockout is an essential Lockout-Tagout (LOTO) safety device used to secure gate valves in the OFF (closed) position during maintenance, servicing, or repair operations. It prevents unauthorized or accidental valve operation, ensuring full isolation of hazardous energy sources.
Gate valve lockouts are designed in accordance with regulations set by the Occupational Safety and Health Administration (OSHA) and safety standards issued by the National Fire Protection Association (NFPA).
In Pakistan, industrial safety compliance and product standards fall under the Pakistan Standards and Quality Control Authority (PSQCA).
Gate valve lockouts are widely used in oil refineries, chemical plants, power stations, textile mills, cement factories, pharmaceutical industries, food processing units, and manufacturing facilities across Pakistan.
Gate Valve Lockout – Overview
A Gate Valve Lockout Device is specifically designed to enclose the handwheel of a gate valve, preventing it from being turned. Unlike ball valves, gate valves operate using a circular wheel handle, and the lockout device fully surrounds this wheel to restrict movement.
It ensures:
- Complete isolation of liquid or gas flow
- Prevention of accidental startup
- Compliance with LOTO procedures
- Protection against hazardous leaks
- Enhanced worker safety during maintenance
What Is a Gate Valve Lockout?
A gate valve lockout is a mechanical safety enclosure that fits over the valve wheel and locks it in place using a safety padlock.

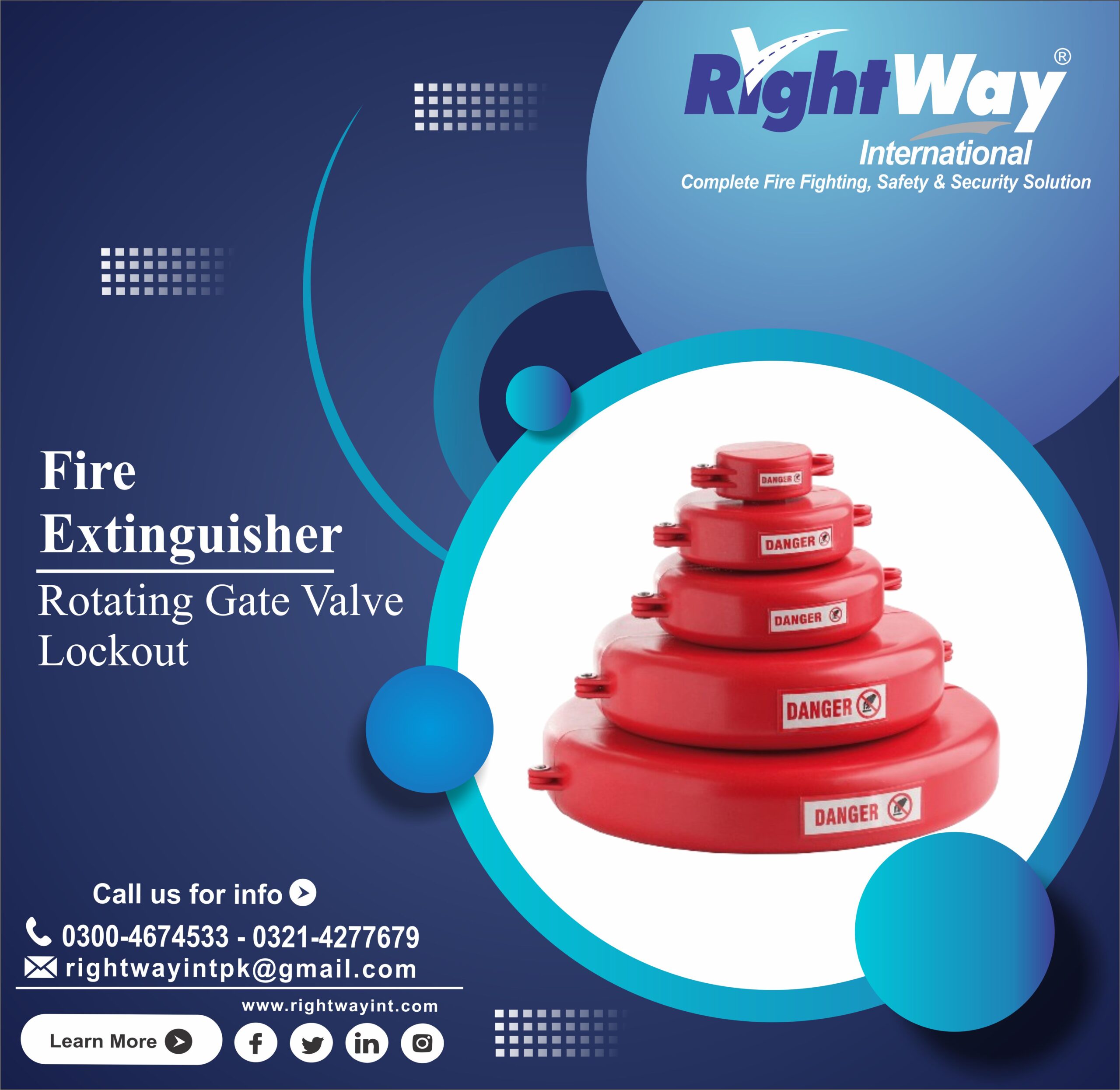

Gate Valve Lockout in Pakistan Price Types Uses Benefits & Suppliers
Main Components
- High-impact ABS or polypropylene body
- Hollow circular enclosure design
- Multiple padlock holes
- Chemical-resistant and non-conductive material
- UV-resistant for outdoor use
- Bright red or yellow high-visibility color
Gate valve lockouts are available for valve wheel diameters ranging from 1 inch to 18 inches or larger.
How Gate Valve Lockout Works
1️⃣ Identify the gate valve controlling the hazardous energy source.
2️⃣ Turn the valve fully to the CLOSED position.
3️⃣ Place the gate valve lockout device over the handwheel.
4️⃣ Insert one or multiple safety padlocks through designated holes.
5️⃣ Attach a warning tag (“Danger – Do Not Operate”).
6️⃣ Verify zero energy state before starting maintenance.
The valve cannot be reopened until authorized personnel remove the padlock.
Types of Gate Valve Lockouts in Pakistan
1. Standard Gate Valve Lockout
- Suitable for small to medium valve wheels
- Durable thermoplastic construction
- Multiple padlock capability
Used in: Manufacturing plants, water treatment facilities
2. Adjustable Gate Valve Lockout
- Telescopic or rotating design
- Fits multiple valve sizes
- Compact and lightweight
Used in: Maintenance departments handling varied valve sizes
3. Large Diameter Gate Valve Lockout
- Designed for large industrial valves
- Heavy-duty construction
- High padlock capacity
Used in: Oil refineries, power generation plants
4. Stainless Steel Gate Valve Lockout
- Corrosion-resistant
- Suitable for harsh and marine environments
- Long service life
Used in: Chemical industries, offshore facilities
5. Electrical Insulated Gate Valve Lockout
- Made from non-conductive nylon
- Ideal for hazardous environments
Used in: Electrical substations and chemical processing plants
Integration with Complete LOTO System
Gate valve lockouts function as part of a comprehensive hazardous energy control program.
Related Lockout Devices
🔒 Safety Padlocks (keyed different, master key systems, aluminum safety padlocks)
🔐 Lockout Hasps (multi-person lockout devices)
🏷 Lockout Tags (Danger/Warning identification tags)
🧰 Adjustable Cable Lockouts
⚡ Circuit Breaker Lockouts (MCB lockout, MCCB lockout devices)
🔌 Plug Lockouts
📦 Group Lock Boxes
📌 Lockout Stations
🎒 Lockout Bags & Pouches
🛢 Ball Valve Lockouts
🔧 Butterfly Valve Lockouts
A complete LOTO kit ensures full isolation of electrical, mechanical, hydraulic, and pneumatic energy sources.
Applications of Gate Valve Lockout in Pakistan
Gate valve lockouts are commonly used in:
- Oil & gas processing plants
- Chemical manufacturing industries
- Power generation stations
- Water treatment plants
- Cement factories
- Textile mills
- Pharmaceutical industries
- Food & beverage processing units
They prevent:
- Accidental fluid discharge
- Steam release
- Hydraulic pressure hazards
- Chemical leaks
- Workplace injuries
Gate Valve Lockout Price in Pakistan
Prices vary based on valve size, material, and brand quality.
| Type | Price Range (PKR) |
|---|---|
| Small Gate Valve Lockout | 1,800 – 4,500 |
| Medium Size Lockout | 3,500 – 8,000 |
| Large Diameter Lockout | 7,000 – 18,000 |
| Stainless Steel Lockout | 9,000 – 22,000 |
Bulk industrial orders often reduce per-unit cost.
Gate Valve Lockout Suppliers in Pakistan
Karachi
Major demand in oil terminals, ports, and heavy industries.
Lahore
Strong adoption in manufacturing and industrial zones.
Faisalabad
Textile industry implementing advanced LOTO compliance.
Islamabad & Rawalpindi
Government-approved and private industrial safety suppliers.
When selecting a supplier, ensure:
- OSHA-compliant design
- Durable impact-resistant material
- Multiple padlock capacity
- Proper labeling and warning signs
- Availability of complete LOTO systems
Proper Usage Procedure
- Conduct energy isolation risk assessment
- Identify correct valve wheel diameter
- Select appropriate lockout size
- Apply lockout device securely
- Attach safety padlock and tag
- Verify zero-energy state
- Remove only after maintenance completion
Only trained and authorized personnel should operate LOTO devices.
Maintenance & Inspection
- Inspect for cracks or deformation
- Check padlock holes for wear
- Clean after exposure to chemicals
- Store in lockout station
- Replace damaged units immediately
Routine inspection ensures long-term safety compliance.
Benefits of Gate Valve Lockout
- Prevents accidental valve operation
- Ensures OSHA LOTO compliance
- Durable and chemical-resistant
- Suitable for small and large valves
- Cost-effective industrial safety solution
- Supports group lockout procedures
- Reduces workplace accidents
- Strengthens safety management systems
Gate valve lockout devices are among the most important mechanical isolation tools in industrial LOTO kits.
Frequently Asked Questions (FAQ)
Can one device fit all gate valve sizes?
No. Different sizes are required, but adjustable models cover multiple ranges.
Is it reusable?
Yes, high-quality gate valve lockouts are durable and reusable.
Can multiple workers apply their locks?
Yes, most models allow multiple padlocks for group lockout.
Is it suitable for outdoor environments?
Yes, UV-resistant thermoplastic and stainless steel versions are ideal for outdoor use.
Conclusion
Gate Valve Lockout in Pakistan is a critical LOTO safety device used to secure valve wheels and prevent hazardous energy release. When integrated with safety padlocks, lockout hasps, tags, cable lockouts, circuit breaker lockouts, plug lockouts, group lock boxes, lockout stations, lockout bags, and other valve lockout devices, it ensures complete energy isolation and industrial safety compliance.
