Ball Valve Lockout devices are critical Lockout/Tagout (LOTO) safety solutions designed to secure ball valves in the OFF, ON, or partially open position during industrial maintenance, servicing, repair, and hazardous energy isolation procedures. These lockout devices help prevent accidental valve operation, unauthorized access, and the unexpected release of hazardous energy in industrial environments.
Safety professionals widely use ball valve lockout systems to improve workplace safety, support Occupational Safety and Health Administration (OSHA) compliance, and protect workers during maintenance operations involving pipelines, fluid systems, gas lines, hydraulic systems, and chemical processing equipment.
Because ball valves control the flow of liquids, gases, steam, chemicals, and compressed air in industrial systems, proper valve isolation is essential for preventing workplace accidents and hazardous energy exposure.
What Is a Ball Valve Lockout?

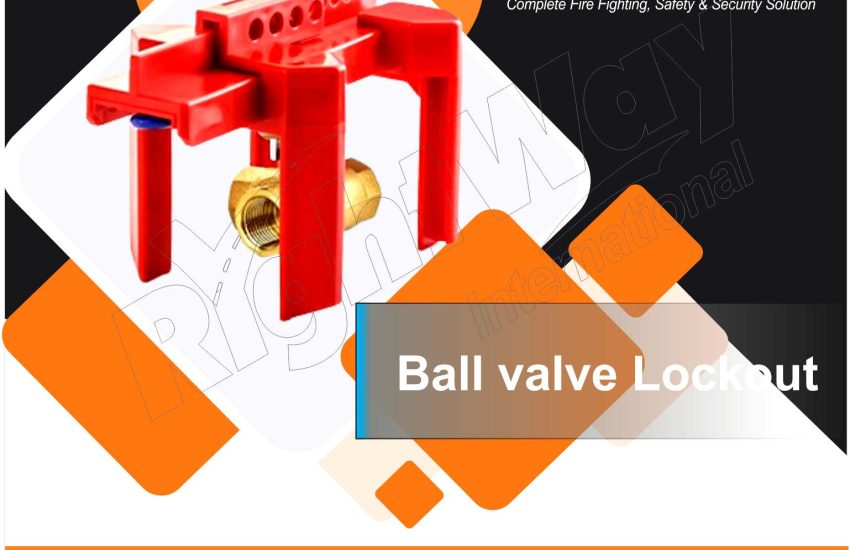

A Ball Valve Lockout is a specialized Lockout/Tagout device designed to secure ball valve handles and prevent valve movement during servicing or maintenance operations.
The device fits over or around the valve handle and locks into place using safety padlocks, ensuring that the valve cannot be opened or closed until authorized employees remove the lockout device.
Ball valve lockouts commonly secure:
- Quarter-turn ball valves
- PVC ball valves
- Stainless steel ball valves
- Gas line valves
- Water isolation valves
- Hydraulic shutoff valves
- Pneumatic system valves
- Steam line valves
- Chemical transfer valves
- Industrial pipeline systems
Most ball valve lockout devices support:
- OSHA-compliant LOTO procedures
- Hazardous energy isolation
- Group lockout applications
- Mechanical lockout systems
- Industrial maintenance safety programs
- Valve shutdown operations
- Pipeline servicing procedures
- Multi-worker lockout systems
Because ball valve lockouts physically block valve operation, they significantly improve worker safety during maintenance and repair activities.
Common Applications of Ball Valve Lockout Devices
Industries use ball valve lockout systems for various hazardous energy control applications, including:
- Industrial machinery maintenance
- Chemical processing shutdowns
- Oil and gas servicing
- Water treatment facility maintenance
- HVAC system repairs
- Steam line isolation
- Pneumatic system servicing
- Hydraulic equipment maintenance
- Manufacturing equipment shutdowns
- Pipeline maintenance operations
- Power generation maintenance
- Food processing sanitation procedures
- Pharmaceutical production safety
- Construction site lockout procedures
- Mining equipment servicing
How Ball Valve Lockout Devices Work
Ball valve lockout systems provide a secure and effective method for isolating hazardous fluid and gas energy sources.
Step 1: Valve Shutdown
Authorized employees rotate the ball valve handle to the required safe position, usually OFF or CLOSED.
Step 2: Lockout Device Installation
Workers place the ball valve lockout device over the valve handle.
Step 3: Padlock Application
A safety padlock secures the lockout device to prevent valve movement.
Step 4: Tagout Identification
Workers attach warning tags identifying the authorized employee performing the lockout procedure.
Step 5: Hazardous Energy Isolation
The locked valve remains secured during maintenance, servicing, cleaning, or repair operations.
Step 6: Lockout Removal
After maintenance is completed, authorized personnel safely remove the lockout device and restore system operation.
Types of Ball Valve Lockout Devices
Different industrial systems require different valve lockout solutions.
1. Standard Ball Valve Lockout
Standard ball valve lockouts secure common quarter-turn valves.
Features:
- Compact industrial design
- Easy installation
- Durable thermoplastic construction
- OSHA-compliant locking points
2. Adjustable Ball Valve Lockout
Adjustable lockout devices fit multiple valve sizes.
Benefits:
- Flexible sizing
- Multi-valve compatibility
- Cost-effective lockout solution
- Ideal for maintenance teams
3. PVC Ball Valve Lockout
PVC-compatible lockouts are designed specifically for plastic piping systems.
Applications:
- Water treatment plants
- Chemical processing facilities
- Irrigation systems
- Corrosion-sensitive environments
4. Metal Ball Valve Lockout
Heavy-duty metal lockout devices provide maximum durability in rugged industrial environments.
Advantages:
- High impact resistance
- Corrosion-resistant materials
- Long service life
- Suitable for harsh industrial conditions
5. Mini Ball Valve Lockout
Mini lockout devices secure small-diameter valves used in compact systems.
Common Uses:
- Laboratory equipment
- Instrumentation systems
- Pneumatic controls
- Small process lines
Technical Specifications
| Specification | Details |
|---|---|
| Material | Polypropylene, Nylon, Steel, Aluminum |
| Valve Size Compatibility | 1/4 inch to 8 inch |
| Locking Method | Safety Padlock |
| Color | Red, Yellow, Blue, Custom Colors |
| Temperature Resistance | Industrial-grade heat resistance |
| Chemical Resistance | Available |
| UV Resistance | Available |
| Compliance | OSHA 29 CFR 1910.147 Support |
Key Features and Advantages of Ball Valve Lockouts
Improved Worker Safety
Ball valve lockouts prevent accidental valve activation during servicing procedures.
OSHA Compliance Support
Proper valve lockout systems help organizations comply with OSHA Lockout/Tagout standards.
Easy Installation
Most lockout devices install quickly without requiring special tools.
Durable Industrial Construction
Industrial-grade materials withstand harsh environments and repeated use.
Prevents Unauthorized Operation
Only authorized employees can remove the lockout device and restore valve operation.
Versatile Valve Compatibility
Many lockout devices fit multiple valve sizes and handle configurations.
Supports Group Lockout Procedures
Multiple workers can apply padlocks during group maintenance activities.
Reduces Workplace Accidents
Proper hazardous energy isolation significantly lowers injury risks.
How to Select the Right Ball Valve Lockout
Choosing the correct valve lockout device improves safety and operational efficiency.
1. Identify Valve Size
Verify the valve diameter and handle dimensions before selecting a lockout device.
2. Evaluate Environmental Conditions
Use corrosion-resistant or chemical-resistant materials for harsh industrial environments.
3. Consider Lockout Type
Choose adjustable lockouts for facilities with multiple valve sizes.
4. Verify OSHA Compliance
Ensure the lockout device supports OSHA hazardous energy control requirements.
5. Check Material Durability
Heavy-duty environments require industrial-grade lockout materials.
Best Practices for Ball Valve Lockout Safety
- Use only OSHA-approved lockout devices.
- Inspect lockout devices regularly for damage or wear.
- Replace damaged lockout equipment immediately.
- Train employees on proper valve lockout procedures.
- Use lockout tags for worker identification.
- Follow facility-specific hazardous energy control programs.
- Verify zero-energy conditions before maintenance begins.
- Maintain organized lockout/tagout stations.
- Conduct regular LOTO safety audits.
- Standardize valve lockout procedures across the facility.
Industries That Commonly Use Ball Valve Lockouts
Manufacturing Plants
Factories use valve lockout devices during machinery maintenance and fluid system servicing.
Oil and Gas Industry
Pipeline systems and processing facilities require secure valve isolation procedures.
Chemical Processing Facilities
Chemical plants use ball valve lockouts to control hazardous material flow during maintenance.
Power Generation Plants
Steam and fluid control systems require reliable hazardous energy isolation.
Water Treatment Facilities
Operators isolate water flow systems safely during equipment servicing.
Food and Beverage Industry
Sanitation procedures often require temporary valve shutdown and lockout.
Pharmaceutical Industry
Valve lockout systems help maintain safe processing environments.
Mining Operations
Heavy-duty valve lockouts improve safety during hydraulic and pneumatic equipment servicing.
Importance of OSHA Compliance for Ball Valve Lockout Devices
OSHA’s Lockout/Tagout Standard (29 CFR 1910.147) requires employers to protect workers from hazardous energy during servicing and maintenance operations.
Proper ball valve lockout systems help organizations:
- Improve hazardous energy control
- Reduce workplace injuries
- Prevent accidental valve operation
- Support OSHA inspections
- Standardize maintenance safety procedures
- Improve employee safety awareness
- Reduce operational downtime
- Protect industrial equipment
Failure to implement proper lockout/tagout procedures may result in severe injuries, OSHA penalties, equipment damage, and costly production interruptions.
Adjustable Cable Lockout and Ball Valve Lockout
An Adjustable Cable Lockout is a flexible lockout/tagout device that uses a durable cable and locking mechanism to secure multiple hazardous energy isolation points simultaneously.
Unlike standard valve lockouts, adjustable cable lockouts can wrap around:
- Multiple ball valves
- Gate valves
- Electrical disconnects
- Circuit breakers
- Pneumatic systems
- Hydraulic controls
- Industrial machinery
Adjustable cable lockouts are ideal for complex group lockout procedures where multiple energy sources require simultaneous isolation.
Difference Between Ball Valve Lockout and Gate Valve Lockout
| Feature | Ball Valve Lockout | Gate Valve Lockout |
|---|---|---|
| Valve Type | Quarter-turn valves | Wheel-handle valves |
| Installation | Fits valve handle | Encloses valve wheel |
| Applications | Fluid and gas isolation | Pipeline flow control |
| Portability | Compact | Moderate |
| Ease of Use | Quick installation | Slightly larger setup |
| Common Industries | Oil & gas, manufacturing | Utilities, water systems |
Lockout Bag or Pouch
These bags help workers organize lockout tools safely while ensuring quick access during maintenance procedures. Some models attach directly to belts, while larger lockout bags include carrying handles or shoulder straps for mobile industrial applications.
Lockout bags and pouches commonly store:
- Safety padlocks
- Lockout hasps
- Adjustable cable lockouts
- Valve lockout devices
- Circuit breaker lockouts
- Lockout tags
- Group lockout equipment
- Plug lockout devices
- Safety keys
- Electrical lockout tools
Most lockout bags support:
- Portable lockout kits
- OSHA-compliant LOTO systems
- Group lockout procedures
- Multi-device storage
- Industrial maintenance safety programs
- Electrical and mechanical lockout operations
Because workers can keep lockout devices organized and readily available, lockout bags improve hazardous energy control efficiency and workplace safety.
Frequently Asked Questions (FAQs)
What is a ball valve lockout used for?
A ball valve lockout prevents accidental operation of ball valves during maintenance and hazardous energy isolation procedures.
Are ball valve lockouts OSHA required?
OSHA requires effective hazardous energy control procedures. Ball valve lockouts help organizations comply with OSHA Lockout/Tagout standards.
What materials are ball valve lockouts made from?
Manufacturers commonly use polypropylene, nylon, aluminum, steel, and industrial-grade thermoplastics.
Can one lockout fit multiple valve sizes?
Yes. Adjustable ball valve lockouts are designed to fit various valve sizes and handle configurations.
Are ball valve lockouts reusable?
Yes. Most industrial-grade lockout devices are reusable and designed for long-term industrial use.
Can multiple workers lock the same valve?
Yes. Group lockout procedures allow multiple padlocks to secure the same lockout device.
Conclusion
Ball Valve Lockout devices are essential industrial safety solutions that improve hazardous energy control, support OSHA compliance, and protect workers during maintenance and servicing operations. By physically preventing valve movement, these lockout/tagout devices help reduce workplace accidents, improve maintenance efficiency, and enhance overall industrial safety.
Whether used in manufacturing plants, oil refineries, chemical processing facilities, power generation stations, water treatment systems, mining operations, or construction sites, ball valve lockout systems remain a critical component of modern Lockout/Tagout safety programs.
