Fire Hose Coupling Complete Guide Pakistan is a critical component used to connect fire hoses to hydrants, pumps, or other hoses, ensuring a secure and leak-proof water supply during firefighting operations.
In simple terms, it’s the connector that joins the entire firefighting system together.
Among different types, the Storz coupling is one of the most widely used due to its quick-connect (non-threaded) design, making it fast and efficient during emergencies.
Product Description

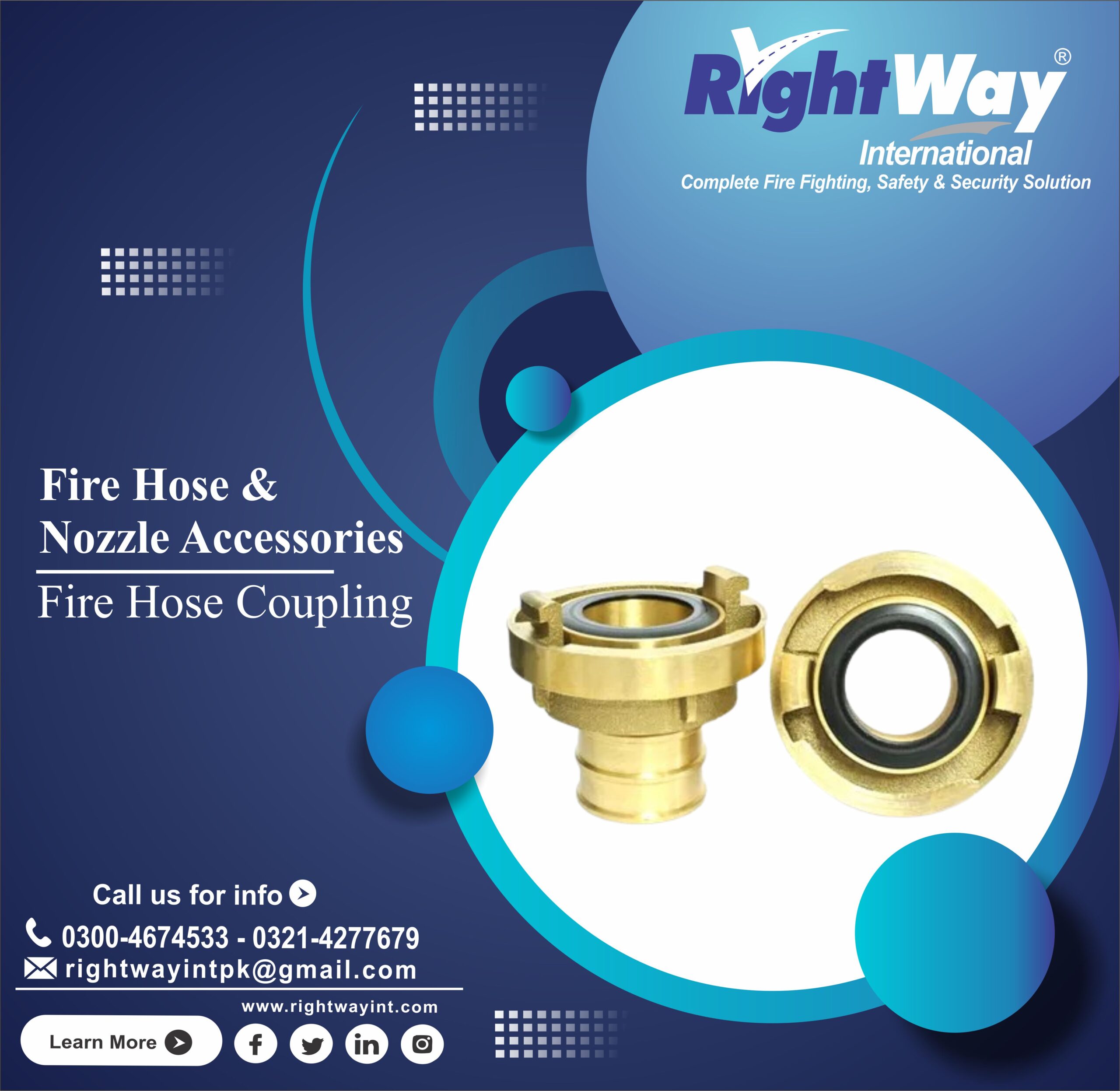

The Storz Fire Hose Coupling is designed for rapid connection and disconnection without the need for threading. It is widely used in fire brigades, industrial fire systems, and hydrant networks across Pakistan.
These couplings are available in two national standards:
- German DIN Standard
- China GB Standard
Although both look very similar, they have slight dimensional differences, meaning:
DIN and GB couplings cannot be connected together, even if they have the same hose size (e.g., 1.5 inch).
Key Features
1: Quick connect and disconnect (no threading required)
2: Available in German DIN and China GB standards
3: Made from rust-resistant brass alloy
4: Strong and durable under high pressure
5: Leak-proof and secure locking system
6: Corrosion and wear resistant
7: Compatible with fire hoses and hydrant systems
8: Long service life in harsh environments
Construction & Materials
- Material: High-quality brass alloy (rust-resistant)
- Design: Symmetrical Storz head for easy connection
- Sealing: Rubber gasket for leak prevention
- Finish: Corrosion-resistant coating
- Locking Mechanism: Lug-based quick coupling
Technical Specifications
- Available Sizes:
- 1.5 inch (38 mm)
- 2 inch (50 mm)
- 2.5 inch (65 mm)
- 3 inch and above
- Standards:
- DIN (German Standard)
- GB (Chinese Standard)
- Working Pressure: 10 – 16 Bar
- Test Pressure: Up to 24 Bar
- Connection Type: Storz (quarter-turn locking system)
How It Works
The Storz coupling uses a quarter-turn locking mechanism:
- Align both coupling ends
- Insert and push together
- Twist clockwise until locked
The internal rubber seal ensures a tight, leak-proof connection, even under high pressure.
Compatibility Note (Important)
Even though DIN and GB couplings look identical:
- They have slightly different lug spacing and dimensions
- They will NOT connect properly
- Always ensure the same standard is used throughout the system
Applications in Pakistan
Used in:
Industrial plants
Commercial buildings
Shopping malls
Hospitals
Educational institutions
Fire brigades
Residential complexes
Oil & gas sector
Common Uses
- Connecting fire hoses to hydrants
- Joining multiple fire hoses
- Fire suppression systems
- Industrial firefighting setups
- Emergency response operations
Price in Pakistan (Estimated)
- 1.5” Brass Coupling: PKR 2,500 – 5,000
- 2” Coupling: PKR 4,000 – 8,000
- 2.5” Heavy-Duty Coupling: PKR 6,000 – 12,000
Price depends on:
- Material quality
- Standard (DIN or GB)
- Size and thickness
- Brand/origin
Installation & Usage Tips
✔ Always match coupling standard (DIN vs GB)
✔ Check gasket condition before use
✔ Ensure proper alignment before locking
✔ Avoid forcing incompatible couplings
✔ Keep spare gaskets available
Maintenance Tips
✔ Clean after use to remove dirt and debris
✔ Inspect rubber seals regularly
✔ Replace worn-out gaskets immediately
✔ Store in dry, rust-free environment
✔ Check for cracks or deformation
Advantages
- Fast and easy connection
- Reliable and leak-proof
- Durable brass construction
- No threading required
- Suitable for high-pressure systems
- Long-lasting performance
❓ FAQs – Fire Hose Coupling
❓ What is a Storz coupling?
It is a quick-connect fire hose coupling that uses a twist-lock mechanism instead of threads.
❓ What is the difference between DIN and GB coupling?
They differ slightly in dimensions, so they are not compatible with each other.
❓ Why is brass used?
Brass is rust-resistant, strong, and durable, making it ideal for firefighting environments.
❓ Can I connect different standards together?
❌ No, always use the same standard (DIN or GB).
❓ Where is it used in Pakistan?
It is widely used in fire hydrant systems, industries, and fire brigades.
🧯 Final Thoughts
The Fire Hose Coupling (Storz Type) is an essential part of any firefighting system, ensuring fast, secure, and leak-proof connections. Its quick-lock design and durable brass construction make it highly reliable in emergency situations.
However, always pay attention to standard compatibility (DIN vs GB) to avoid operational issues during critical moments.
